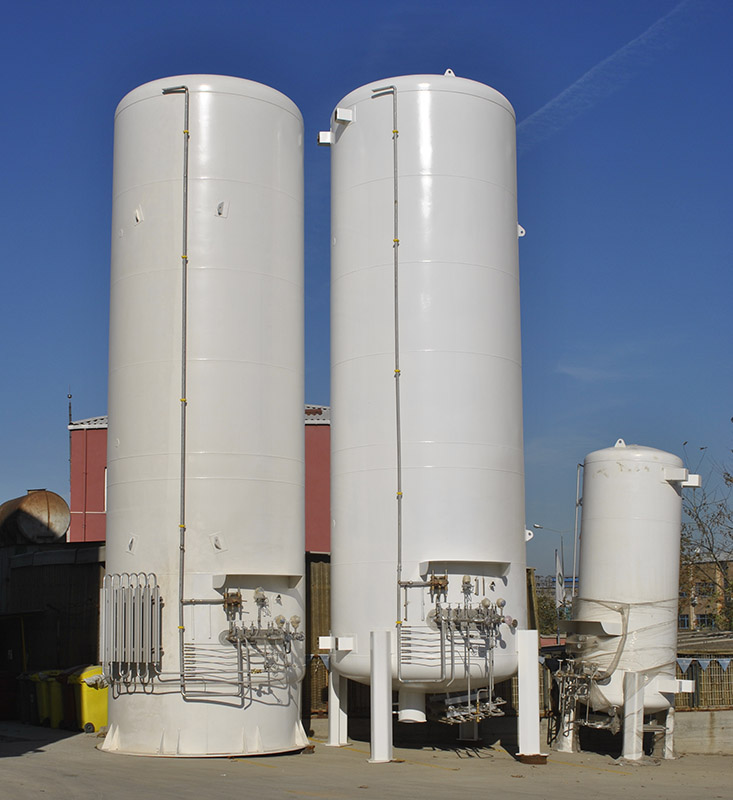

LNG Storage System

LNG Storage and Regasification station

Production in accordance with 2014/68/EU Pressure Equipment Directive (PED), EN 13458, AD 2000 CODE, ASME (U STAMP), GOST
Earthquake resistance design in accordance with Euro code 3

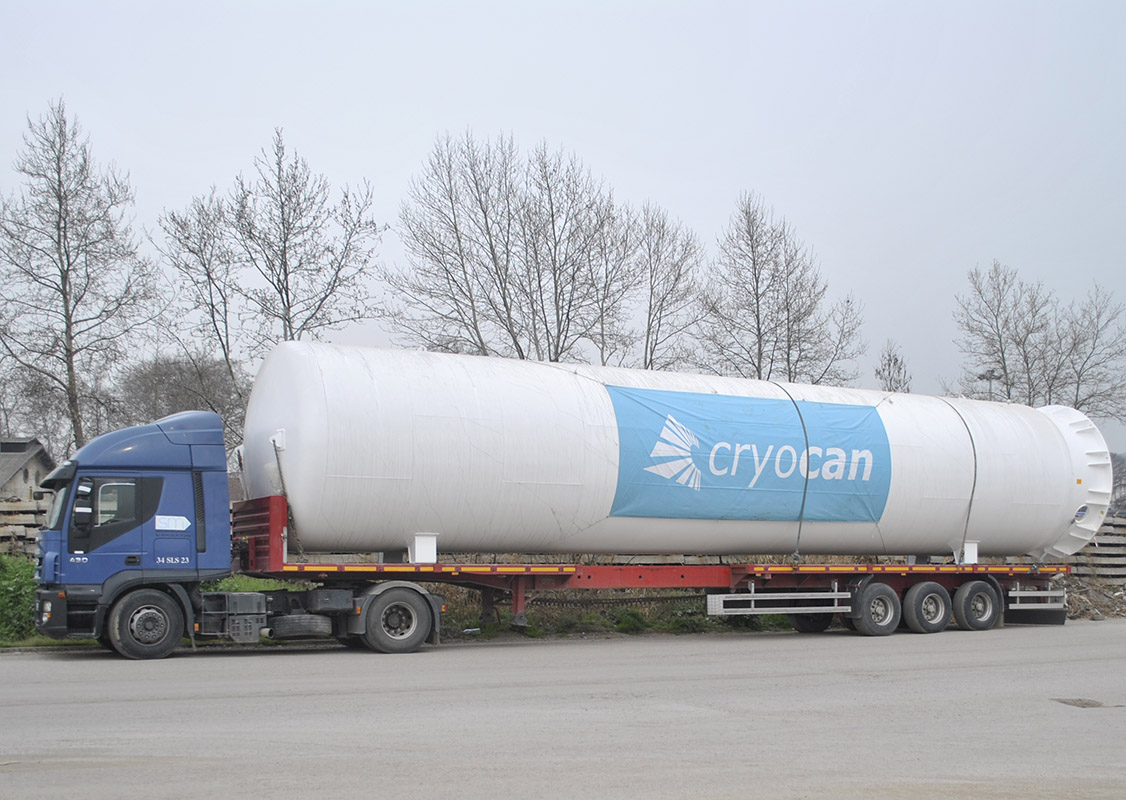

Foot design that facilitates transportation
Valve group design with outlet in lower camber
Design that increases the usage volume
High quality paint application with oven curing
Non-destructive testing tests in accordance with standards (Radiographic test, Penetrant test, Magnetic Particle Test, etc.)

CAPACITY	LENGTH	WIDTH	HEIGHT
3 m³	3423mm	2114mm	2159mm
6 m³	5155mm	2370mm	2540mm
10 m³	6420mm	2540mm	2500mm
16 m³	7150mm	3410mm	3310mm
22 m³	8350mm	3410mm	3310mm
32 m³	9580mm	3050mm	3000mm
53 m³	14500mm	3050mm	3000mm
63 m³	16550mm	3050mm	3000mm

Design Code	: EN 13458-ANNEX C, ASME (U STAMP) and GOST.
Operating pressure	: 5 – 10 bar (MAWP)
Design Temperature	: +50 °C / -196 °C
Oetam Temperature	: -50 °C / +50 °C
Material – Inner Tank	: Stainless Steel (according to standard)
Material – Outer Tank	: Carbon, Stainless Steel or Aluminum (according to standard)
Radiographic Control	: In accordance with the design standard
Liquid Penetration Test	: In accordance with the design standard
